CR-T10 - T10 Cross Rail – Telescopic, 10-Hole

Collins pioneered the use of telescoping Cross Rails with the very first pair of positive-cambered steel rails, debuting with the 1st-Generation Hi-Speed® Dolly in 1975. Today, Collins Cross Rails feature “True Positive Camber” with angled end pieces and center-cambered components, which are compatible with all Collins Hi-Speed® Dolly generations and models.
Description

Each Set Includes

Qty: each

Weight: 24.5 lbs

Introduced in 2022 with the 50th Anniversary Collins G7 Dolly, these double telescoping cross rails collapse shorter, but extend wider than the T6 with 90″ of usable width. Like previous Collins Cross Rails, these feature a true positive camber–twice the camber of other dolly axles–one in the ends and one in the tubing material itself.

  • Outside Dimension collapsed: 59″
  • Inside Dimension extended: 90″ Usable
Videos
See More Videos
Where to Buy

Related
Dealer Resources

Product Photos for Authorized Dealers

Product photography can be used by Authorized Dealers to create their own marketing materials, websites, or social media posts.

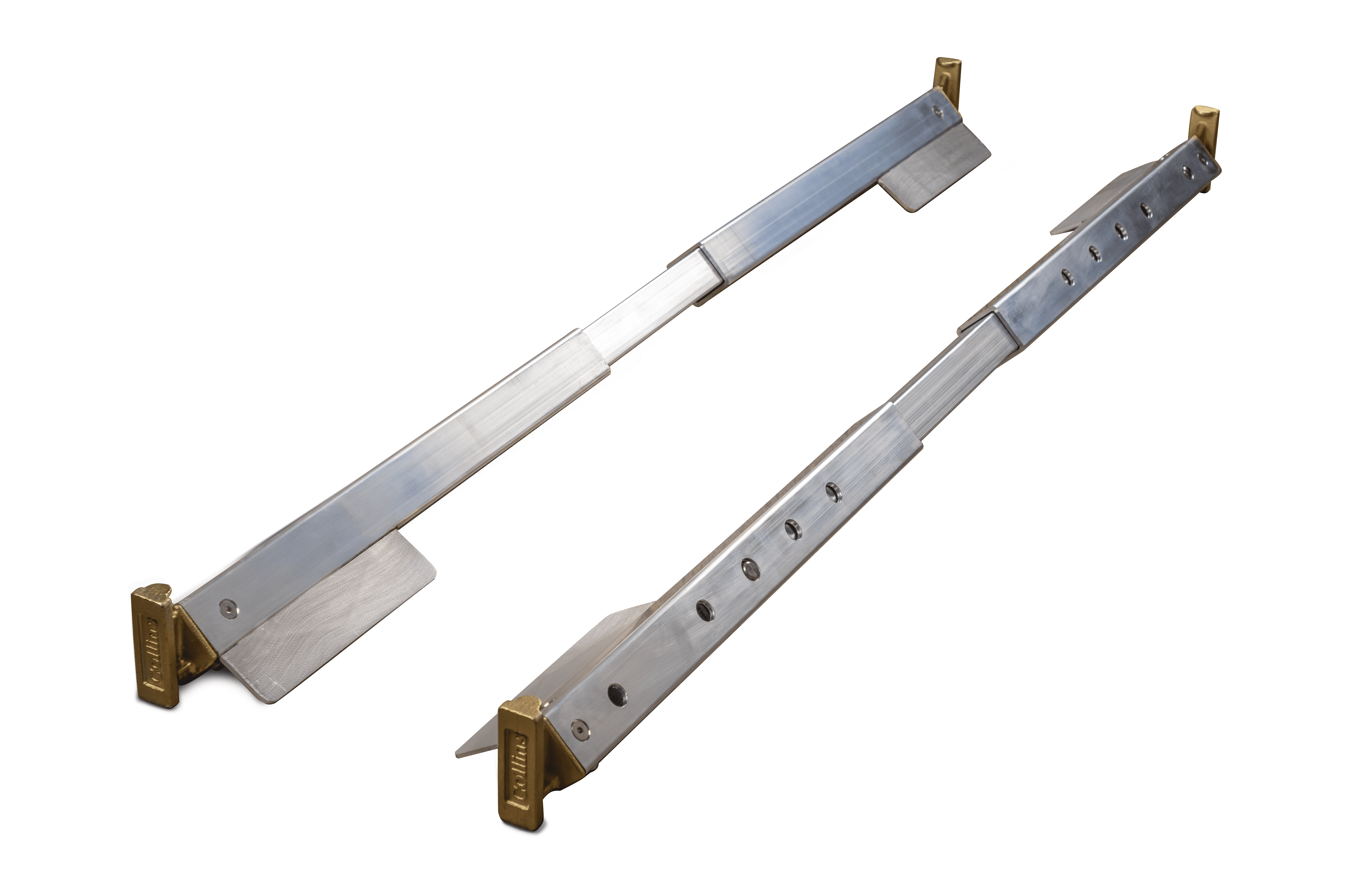

CR-T10 Expanded.png

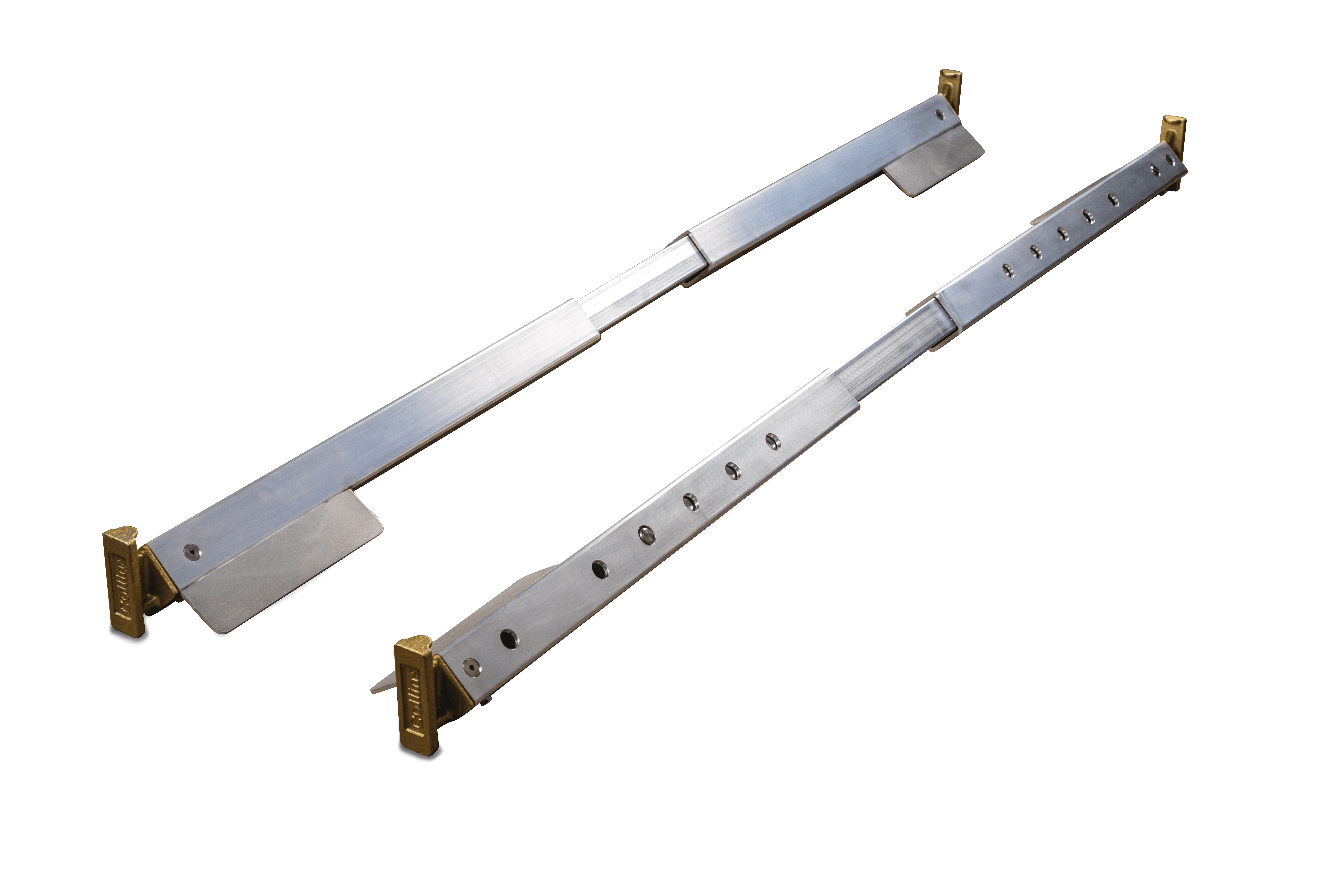

CR-T12 Expanded.png
